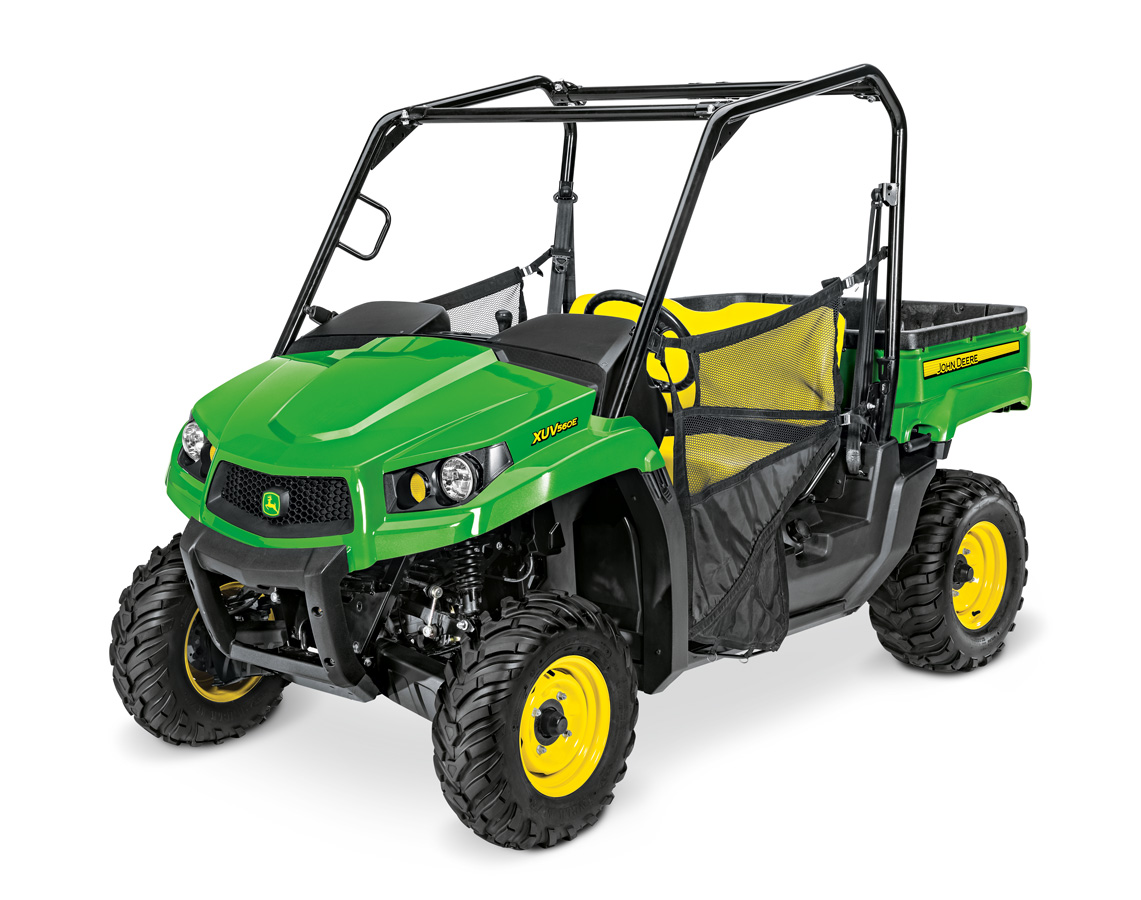

New XUV560E

Mid-Size XUV Side-by-Sides

Starting at: Contact P&K

1.9% for 48 Months Financing Available!

REQUEST A QUOTE VALUE MY TRADE

Key Features

Four-wheel independent suspension for excellent ride and handling
Easier shifting, with integrated park position
Electronic switch for instant 4WD engagement
Comprehensive dash panel with speed indicator

APPLY FOR FINANCING

Expand All

Features

Specifications

Key Specs

Engine power

11.9 kW
16 hp

Cargo box dimensions

820 x 1209 x 297 mm
32.3 x 47.6 x 11.7 in.

Cargo box capacity (weight)

227 kg
500 lb

Towing capacity

680 kg
1500 lb

Front suspension

Fully independent dual A-arm with adjustable coil over shocks, 203 mm (8 in.) travel, anti-roll bar

Rear suspension

Fully independent with lower A-arm and upper camber link with adjustable coil over shocks, 203 mm (8 in.) travel

Final drive

Park, high, low, neutral, reverse transaxle

Four wheel drive

Dash switch actuated four-wheel drive system

Fuel capacity

18.5 L
4.9 U.S. gal.

Engine

Type

4-cycle gas, V-twin, dynamically tuned carb, overhead valves (OHV)

Displacement

570 cc

Power

11.9 kW
16 hp

Cooling system

Air cooled

Drivetrain

Transmission

Continuously Variable Transmission (CVT) with clutch enclosure

Final drive

Park, high, low, neutral, reverse transaxle

Four wheel drive

Dash switch actuated four-wheel drive system

Traction assist

Limited slip front differential, Positive locking, switch actuated rear differential lock

Descent control

Suspension

Front

Fully independent dual A-arm with adjustable coil over shocks, 203 mm (8 in.) travel, anti-roll bar

Rear

Fully independent with lower A-arm and upper camber link with adjustable coil over shocks, 203 mm (8 in.) travel

Brakes

Type

196 mm ventilated four-wheel stainless steel disc brakes with hydraulic 34.93 mm (1.375 in.) diameter twin-piston calipers

Park brake

Park in-transmission

Tires / Wheels

Front

25x8-12 Terra Hawk all-terrain on steel wheels
26x8-14 Maxxis® Bighorn® 2.0 extreme terrain on steel or alloy wheels

Rear

25x10-12 Terra Hawk all-terrain on steel wheels
26x10-14 Maxxis Bighorn 2.0 extreme terrain on steel or alloy wheels

Dimensions / Capacities

Wheelbase

1.86 m
72.8 in.

Weight

With fuel and fluids: 571 kg
1259 lb

Length

2870 mm
113 in.

Width

1435 mm
56.5 in.

Height

1867 mm
73.5 in.

Tread centers

Front: 1220 mm
48 in.
Rear: 1168 mm
46 in.

Ground clearance

Minimum: 267 mm
10.5 in.

Fuel capacity

18.5 L
4.9 U.S. gal.

Cargo box dimensions

820 x 1209 x 297 mm
32.3 x 47.6 x 11.7 in.

Cargo box capacity (weight)

227 kg
500 lb

Payload capacity

408 kg
900 lb

Towing capacity

680 kg
1500 lb

Hitch

Standard 50 mm (2 in.) rear receiver with optional 50 mm (2 in.) front receiver with recovery loops

Features

Color

Green/yellow, olive/black, camo

Power steering

Not available

Battery / Alternator / Power port

Battery: 12 V 340 CCA
Alternator: 16 amp
DC outlet: 12 V

Instrumentation

Digital display with hour meter with maintenance and driver seatbelt reminder; speedometer, gear position, 4WD indicator, rear differential indicator, and engine oil temperature sensor

Storage

Two cupholders, sealed underhood storage, glove box

Seating

Black vinyl bench

Additional information

Country of Manufacture

U.S.

Date collected

8-Jun-22

Offer ends 01/02/2025. Financing subject to approval on John Deere Financial Revolving Plan. Other rates and terms may be available. Residency restrictions may apply. Prices include all bonuses & rebates; plus applicable sales tax. See P&K for details.
